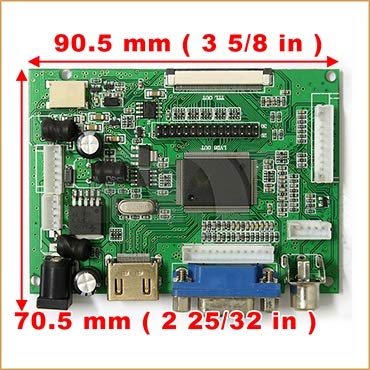

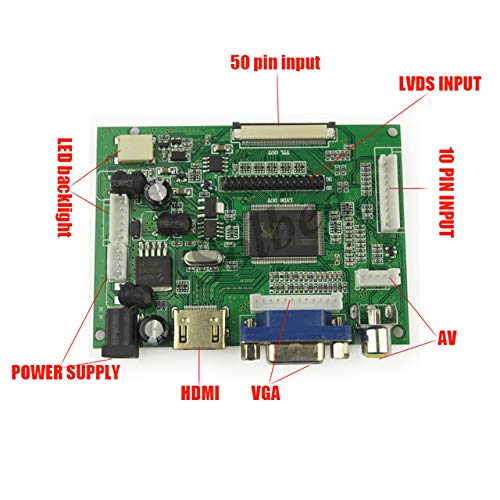

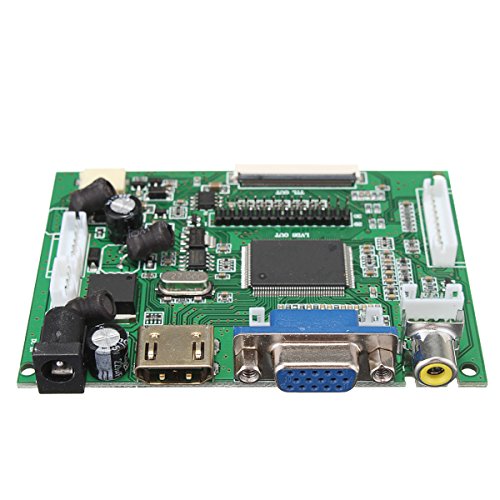

Driver board interfaces: 1.Power supply(5-12v 2a) 2.Hdmi 3.Vga connector 4.Avi 5.Av1+av2 6.Keyboard 7.Ttl signal 50pin 8.Lvds signal 1/2 ch 6bit 8bit 9.12v backlight 10.Inverter connector note: This controller board support automatically switch to av2(reversing view camera). Please connected acc to 12v. The five buttons are as follows: S1 = power, s2=menu/select, s3=up, s4=down, s5=video source select. Package content: 1 x hdmi+vga+2av controller board vs-ty2662-v1 (support automatically switch to av2), 1 x 7inch 800 x 480 led panel at070tn90, 1 x 5-button switch and adjustment panel, 1 x 7 inch touch screen kit. Note1:If you don’t know how to connect the screen,please feel free to contact us. Note 2: Power supply is not included. If you want to connect this screen to your raspberry payout need a a cable or a hdmi cable, or if you have a hdmi to vga cable for raspberry payout can use a vga cable to connect your raspberry pi to this screen. Note3:There is a sticker on the led screen. Please peel off before use. User manual:Https://S3.Amazonaws.Com/ttbox/7lcdtouch.Zip touch panel linux driver:Https://S3.Amazonaws.Com/ttbox/7touchlinuxnewest.Rar installation method http://Youtu.Be/e_yjnsn3sz0.
Brightness: 250cd/m2 (typ.)
Signal interface: Parallel rgb (1 ch, 6-bit)
Display mode: Tn, often white display, transmissive
Rgb:800 x 480, aspect ratio: 16:9 (width: Height), dimension (mm) 106×190

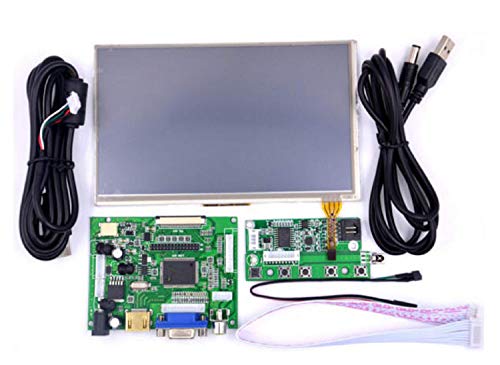

Setting video sources with remote control, package contents: 1 x raspberry pi lcd touch screen display with hdmi vga input driver board kit
