Overview

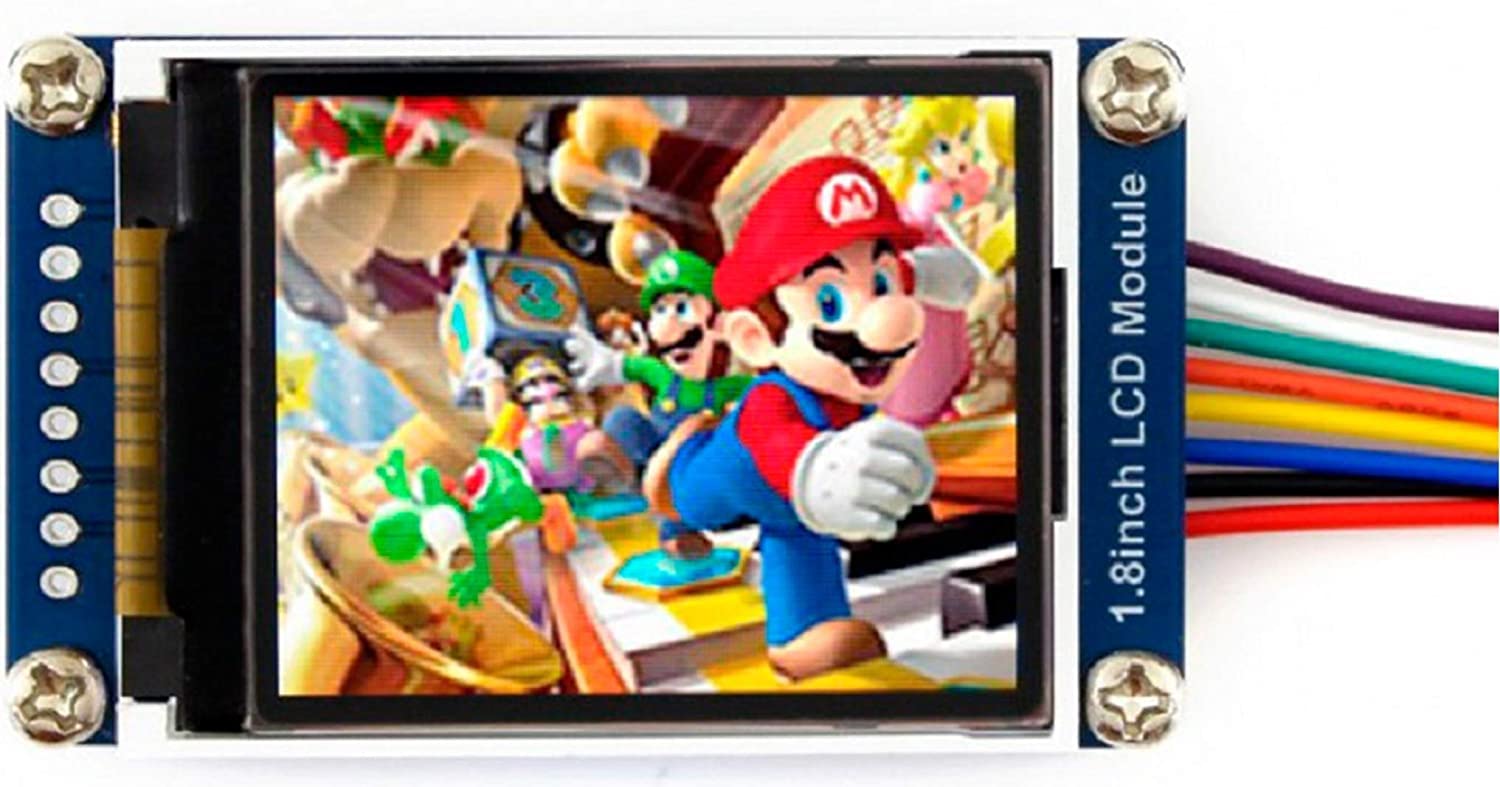

This is a general LCD display Module, 1.8inch diagonal, 128×160 pixels, with embedded controller, communicating via SPI interface.
Features
SPI interface, requires minimum GPIO for controlling
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
Driver: ST7735S
Interface: SPI
Display color: RGB, 65K color
Resolution: 128×160
Backlight: LED
Operating voltage: 3.3V/5V
Interface
VCC —Power (3.3V/5V input)
GND—Ground
DIN —SPI data input
CLK—SPI clock input
CS—Chip selection, low active
DC—Data/Command selection (high for data, low for command)
RST—Reset, low active
BL—Backlight
LCD and the controller
ST7735S is a 132*162 pixel LCD, and this product is a 128*160 pixel LCD, so some processing has been done on the display: the display starts from the second pixel in the horizontal direction, and the first pixel in the vertical direction. Start to display, so as to ensure that the position corresponding to the RAM in the LCD is consistent with the actual position when displayed. The LCD supports 12-bit, 16-bit and 18-bit input color formats per pixel, namely RGB444, RGB565, RGB666 three color formats, this routine uses RGB565 color format, which is also a commonly used RGB format The LCD uses a four-wire SPI communication interface, which can greatly save the GPIO port, and the communication speed will be faster.
Online Document/User Manual: //bit.ly/3CtXZV6
Package Content
1.8inch LCD Module x1
PH2.0 20cm x1
Driver: ST7735S. Interface: SPI
Resolution: 128×160.Display color: RGB, 65K color
Backlight: LED.Operating voltage: 3.3V
Operating voltage: 3.3V/5V (When using 5V power supply, the logic voltage is 5V, when using 3.3V power supply, the logic voltage is 3.3V). Interface: SPI. LCD type: TFT. Driver: ST7735S. Resolution: 128 * 160 (Pixel). Display size: 35.04(W) * 28.03(H)(mm). Pixel size: 0.219(W) * 0.219(H)(MM). Dimension: 56.5 * 34(mm).
